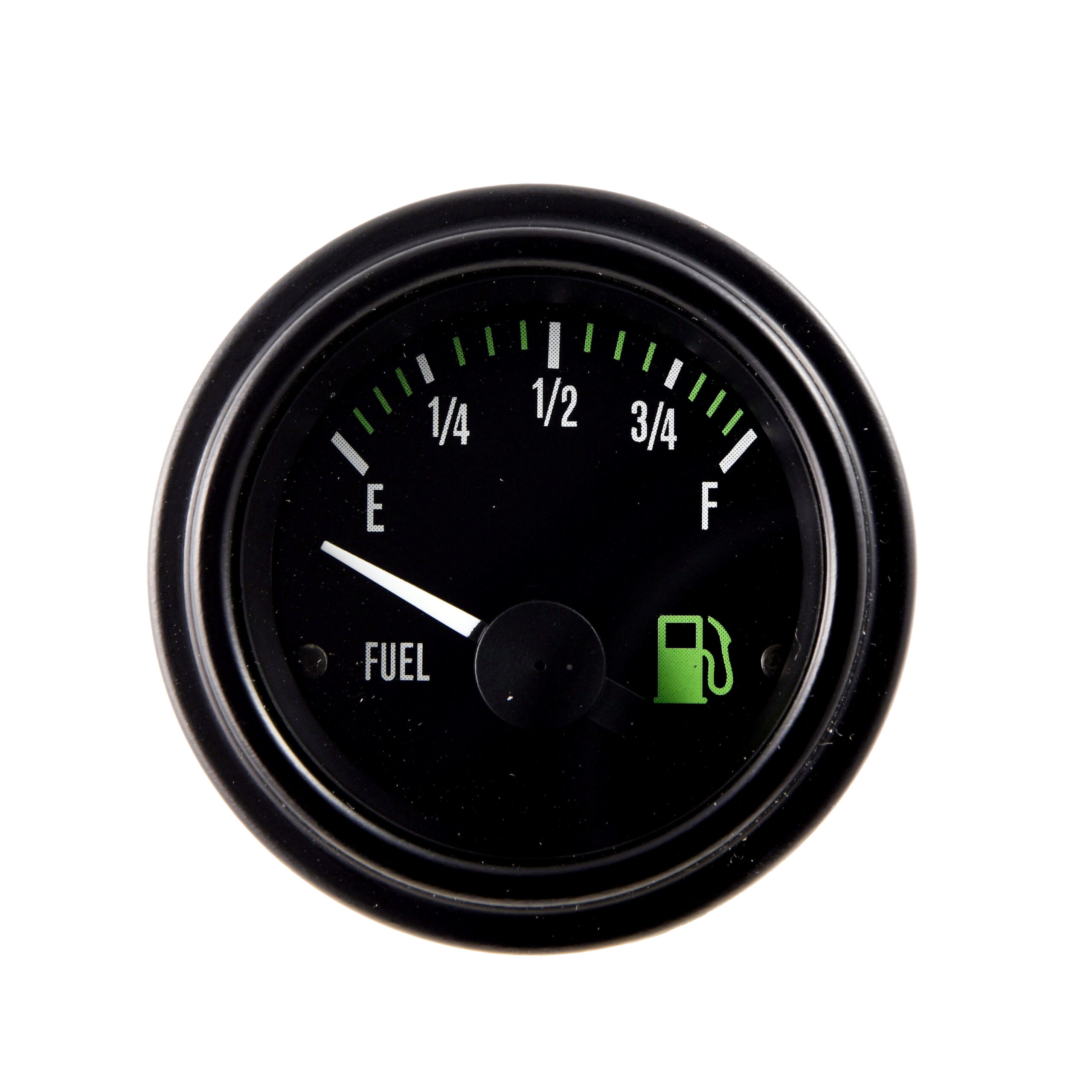

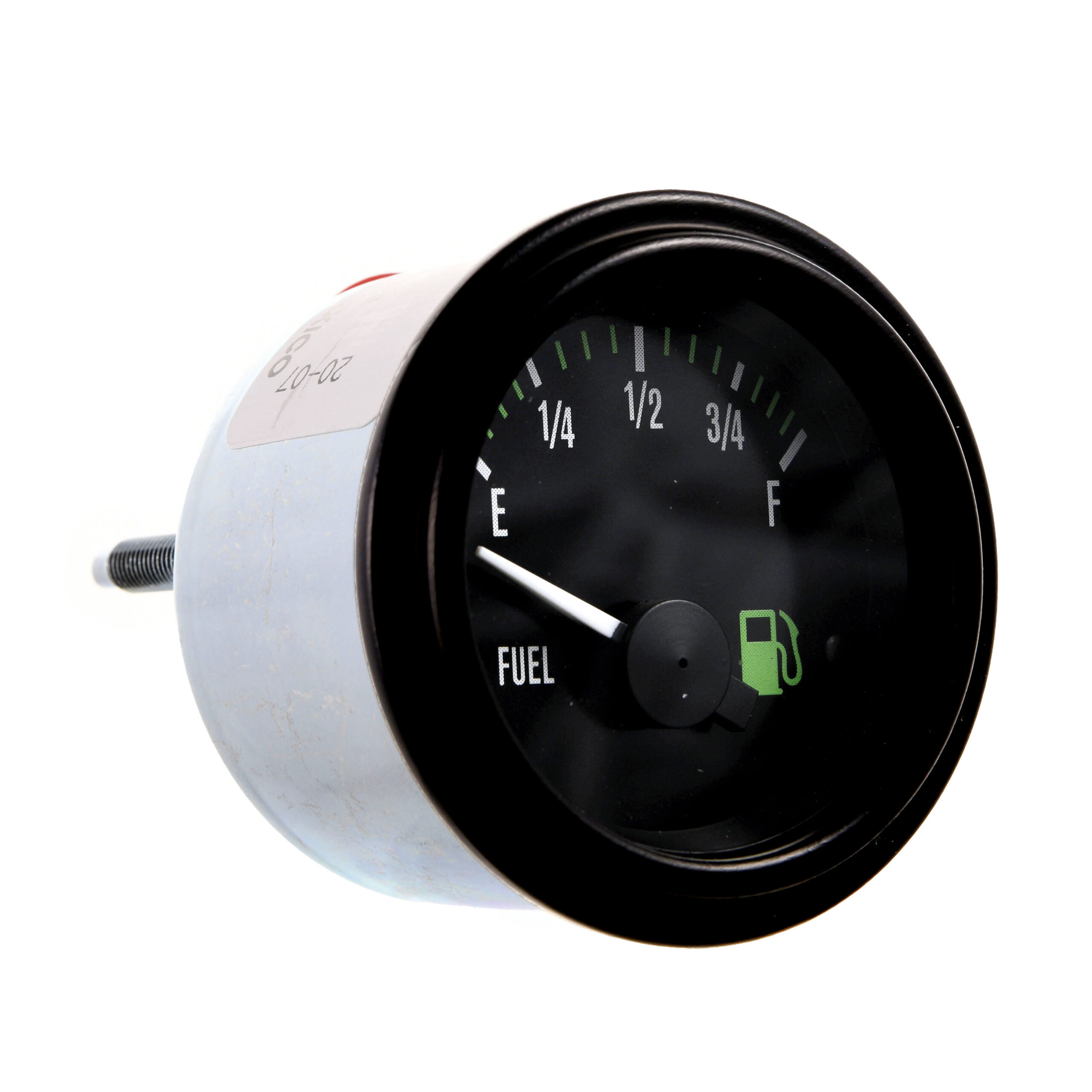

Heavy Duty Plus™ 2-1/16" Fuel Level Gauge E-F


  • Product Number: 82378
  • Product Line: Heavy Duty Plus™
  • Gauge Type: Fuel Level Gauge
  • Input Voltage: 12v
  • Gauge Diameter (in): 2-1/16"
  • Gauge Type/Connection: Electrical
  • In Stock: yes

Product Information

Ideal for commercial and automotive applications alike, these gauges combine distinctive styling with robust construction, including a fully sealed bobbin assembly to house the gauge motor.
• ISO Symbols on face dials indicate function being monitored
• High visibility green tinted night-time illumination
• Attractive black SAE step bezel
• Available in English and dual scale version
• Protected from overvoltage and reverse polarity
• Front-sealed, dust-proof in rear

  • Gauge Diameter (mm): 52
  • Gauge Range: E-F
  • Compatible Electrical Sender: 385AB-P
  • Signal Input: 240-33 Ohms
  • Gauge Face Color: Black
  • Gauge Number Color: White & Green
  • Pointer Color: White
  • Bezel Finish Black
