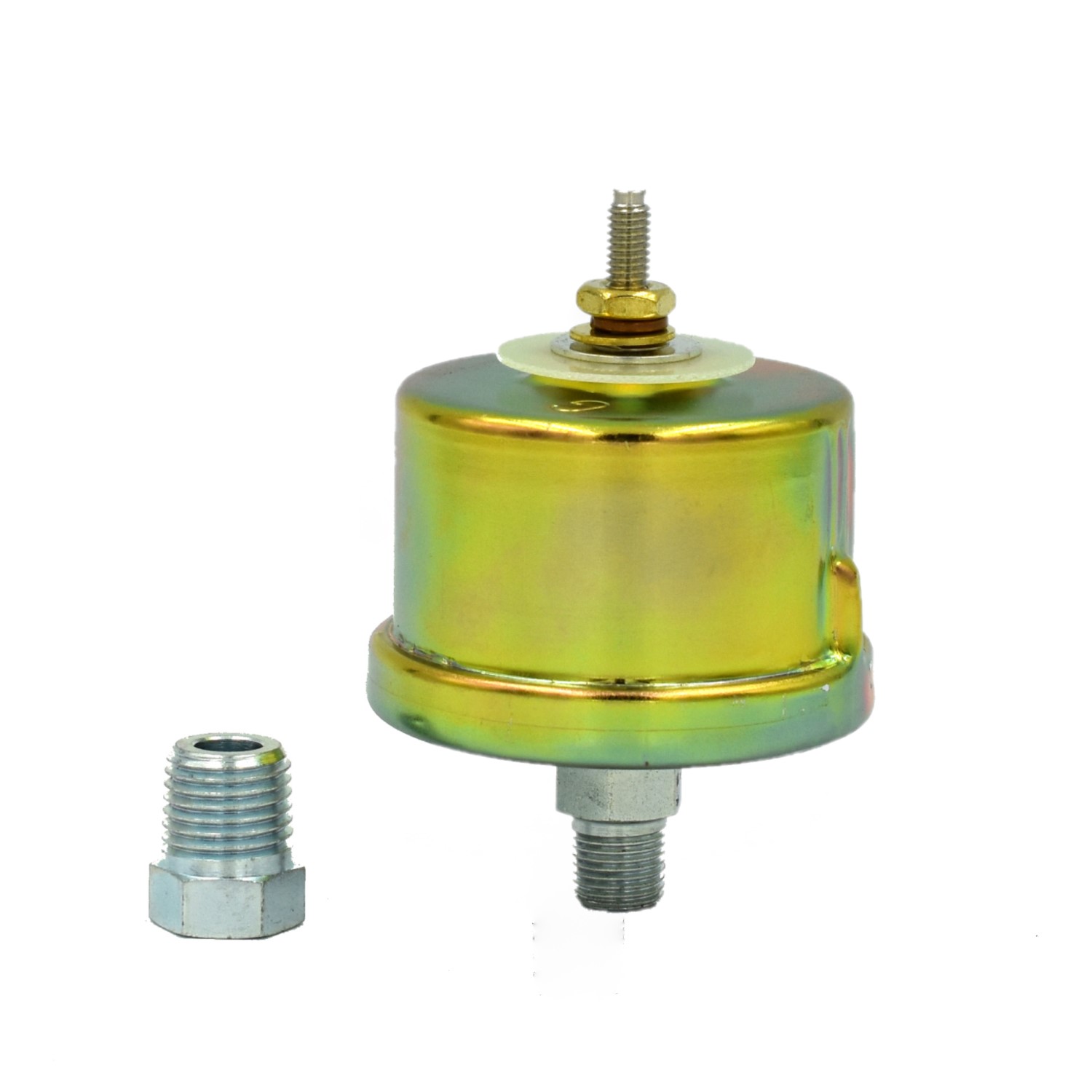

Sender, Pressure

$72.12

  • Product Number: 82514
  • Resistance: 120-16 Ohm
  • Range: 0-80 PSI
  • Mounting Thread: 1/8" NPTF
  • Hex Size: n/a
  • Terminal: 10-32 stud
  • In Stock: no
Product Details

Product Information

• Long term performance – thick film resistors protect against wear
• Superior protection and tighter seals against oil leaks with Kapton(R) high-temperature plastic diaphragms sealed with Viton(R) gasket.
• Available with sealed integrated Packard(TM) connectors, which assure a weather-tight fit for a relaible electric connection and easy installation.
• 12 volts normal operating voltage; can be used in circuits up to 36 volts with voltage adapter
• High degree of accuracy created by computer-guided lasers that trim the resistors to exact specifications.
• Corrosion-resistant materials
• Able to be mounted in any direction
• Outputs to two (dual) gauges

NOTE: The sender resistance range must match the resistance range of the mating gauge or cluster.
